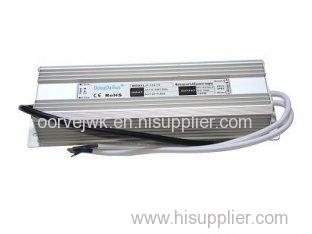

EPA7196 120W Waterproof AC To 12V DC LED Driver 10A IP68 , LED Driver Power Supply

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: F-120-12


<span style="font-family: arial

Short-circuit Protection Waterproof LED Driver Power Supply 120W 12VDC 10A IP68 EPA7196



Quick detail:

Power: 120W

Input: AC110-264V

Output: DC 12V 24V

Size: 248*72*45

Certificate: CE&ROHS

Warranty: 2 years



Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty



Specifications:



Product Electric Parameters

Input specification

Input voltage

AC170V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC  40A@230VAC

Output specification

Start-up time

1S (230V Input, Io=100%)

keep time

20mS (230V Input, Io=100%)

Voltage regulation

(full)0.5%

Protection function

Overload protection

105% - 150% rated power,  automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input--ground

1500VAC/1min

Output---ground

500VAC/1min

Safety standards

According with GB4943,  EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A;  EPA7196; EPA3540C;EPA8270C standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

-&nb
