20W 1670mA GB4943 Waterproof LED Light Driver 12V DC IP68 , LCD Display Power Supply
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Short-circuit Protection Waterproof LED Driv

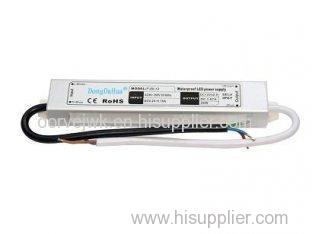

Short-circuit Protection Waterproof LED Driver Power Supply 20W 12VDC 1.67A IP68 GB4943
Quick detail:
Power: 20W
Input: AC110-264V
Output: DC 12V 24V
Size: 160(L)*30(W)*20(H)
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Specifications:
|
Product Electric Parameters |
|||
|
Input specification |
Input voltage |
AC90V---264V |
|
|
Input frequency |
47-63Hz |
||
|
Input surge |
20A@120VAC 40A@230VAC |
||
|
Output specification |
Start-up time |
1S (230V Input, Io=100%) |
|
|
keep time |
20mS (230V Input, Io=100%) |
||
|
Voltage regulation |
(full)0.5% |
||
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
|
Over-voltage protection |
105% - 150% of the rated voltage |
||
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
|
Input--ground |
1500VAC/1min |
||
|
Output---ground |
500VAC/1min |
||
|
Safety standards |
According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. |
||
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|
|
Storage temperature |
