Over-voltage Protection Reliable LED Driver Power Supply 250W 12V DC 21A IP20
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

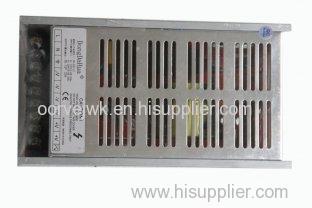

Over-voltage Protection Reliable LED Driver Power Supply 250W 12V DC 21A IP20
Over-voltage Protection Reliable LED Driver Power Supply 250W 12V DC 21A IP20
Specifications:
|
Product Electric Parameters |
|||||||
|
Input specification |
Input voltage |
AC176V---264V |
|||||
|
Input frequency |
47-63Hz |
||||||
|
Input surge |
20A@120VAC 40A@230VAC |
||||||
|
Output specification |
Output voltage can be adjusted |
±10% |
|||||
|
Start-up time |
LEQ 1S(input230V, Io=100%) |
||||||
|
keep time |
More than or equal to 20mS (input230V, Io=100%) |
||||||
|
Voltage regulation |
(Full load) leq0.5% |
||||||
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|||||
|
Over-voltage protection |
105% - 150% of the rated voltage |
||||||
|
Insulation intensity |
Input---output |
1500VAC/1min |
|||||
|
Input---ground |
1500VAC/1min |
||||||
|
Input---ground |
500VAC/1min |
||||||
|
Safety standards |
According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. |
||||||
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
||||||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|||||
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
||||||
|
height above sea level |
Leq 2000M |
||||||
|
Structure |
Size (mm) |
203(L)*110(W)*43(H) |
|||||
|
Cooling method |
Cooling method |
