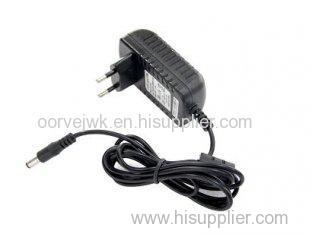

Switching 24 W LED AC DC Power Adapter 12V 50Hz Low Noise , Short-Circuit Protection

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: A-24-12CE


<span styl

Over-current Protection Switching AC DC Power Adapters 24W 12V 2A 50Hz IP54 EN61347-2-13





Application:


It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.



Switching 24 W LED AC DC Power Adapters 12V 50Hz Low Noise , Short-Circuit Protection



Competitive Advantage:



1.built-in EMI filter

2.100% load test

3.Full range of input voltage

4.output voltage accurate and stable

5.Output over-voltage,  over-current and short-circuit protection

6.Output low ripple and noise

7.Two year warranty

8.Average working  no trouble 50, 000 hours





Specifications:



Product Electric Parameters

Input specification

Input voltage

AC110V---220V

Input frequency

50-60Hz

Input surge

20A@120VAC 40A@230VAC

Output specification

Output voltage can be adjusted

±10%

Start-up time

1S(input230V Io=100%)

keep time

20mS (input230V, Io=100%)

Voltage regulation

(Full load) 0.5%

Protection function

Overload protection

105% - 150% rated power,  automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943, EN60950-1 standards.
