Product Detail
Model No.:
F-150-24
Over-voltage Protection Waterproof LED Drive

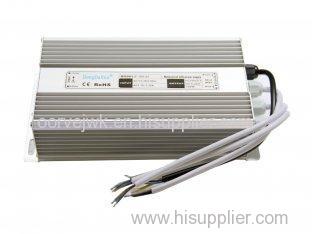

Over-voltage Protection Waterproof LED Driver Power Supply 150W 24VDC 6.5A IP68 EN60950-1
Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble 50, 000 hours
IP68 Waterproof LED Driver 150W 6.5A With Single Output , 24v LED Driver
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Specifications:
|
Product Electric Parameters |
|||
|
Input specification |
Input voltage |
AC90V---264V |
|
|
Input frequency |
47-63Hz |
||
|
Input surge |
20A@120VAC 40A@230VAC |
||
|
Output specification |
Start-up time |
1S (230V Input, Io=100%) |
|
|
keep time |
20mS (230V Input, Io=100%) |
||
|
Voltage regulation |
(full)0.5% |
||
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
|
Over-voltage protection |
105% - 150% of the rated voltage |
||
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
|
Input--ground |
1500VAC/1min |
||
|
Output---ground |
500VAC/1min |
||
|
Safety standards |
According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. |
||
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
||
|
